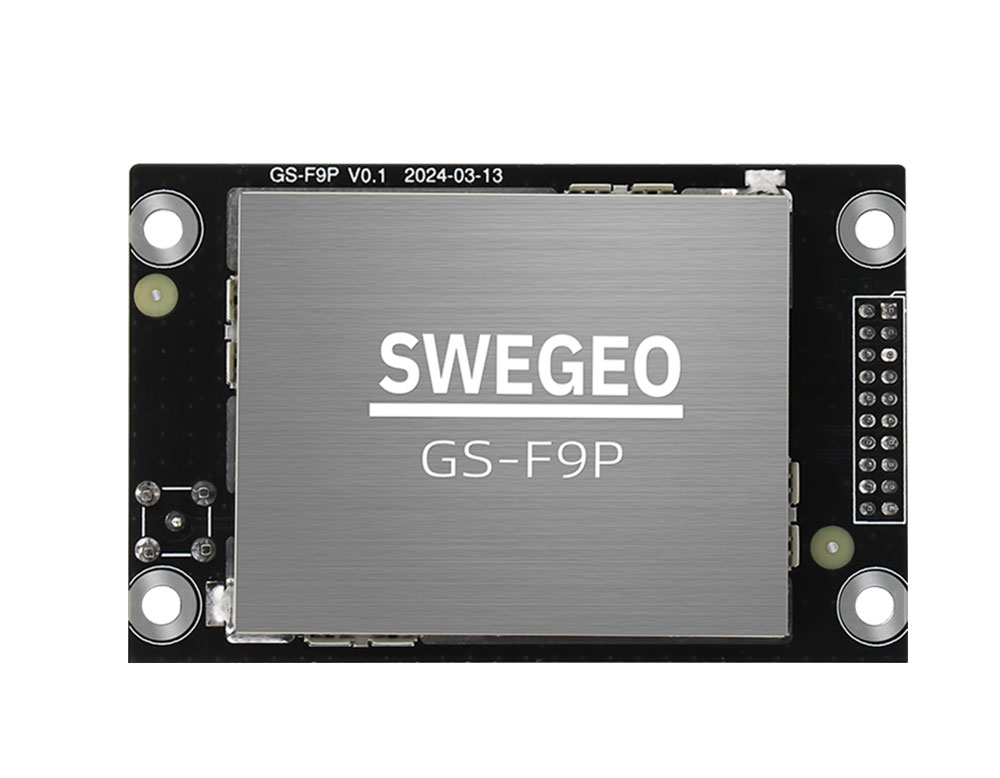

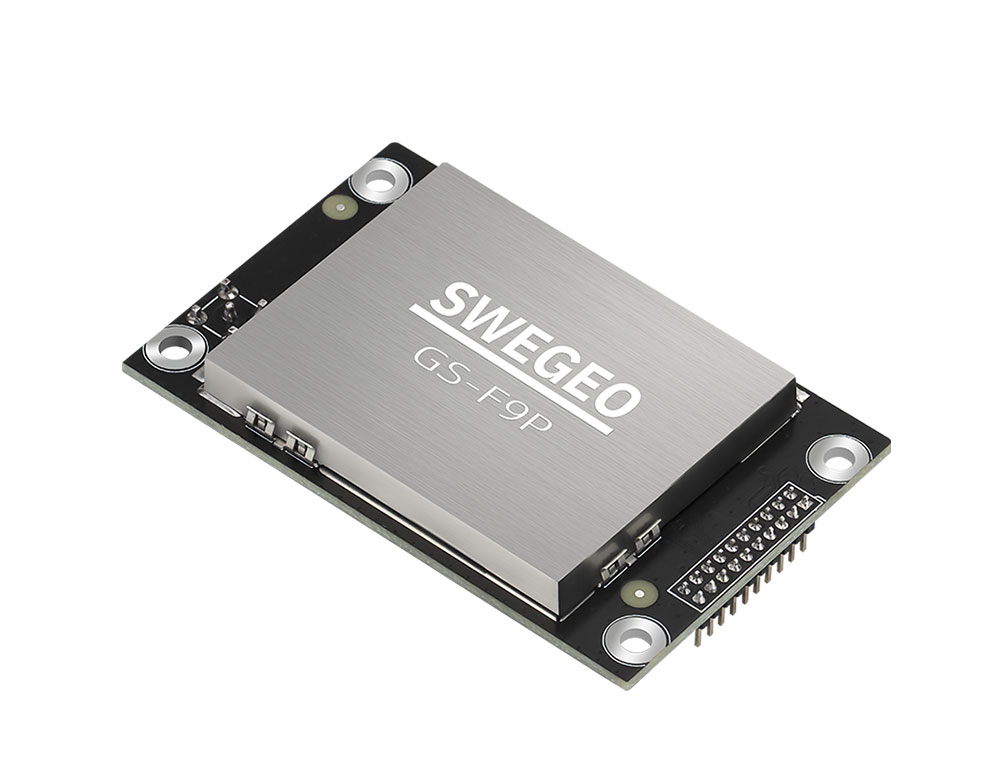

Swegeo GS-F9P

Single Antenna GNSS Receiver Board

The Swegeo GS-F9P board delivers exceptional performance with its multi-band GNSS positioning capabilities, designed for high-precision industrial applications. The board features advanced multi-band RTK technology, providing centimeter-level accuracy for precise navigation and automation of moving machinery. Its compact, surface-mounted design ensures easy integration into various systems while maintaining high performance. The Swegeo GS-F9P is tailored to meet the demands of high-volume applications, offering reliable and detailed positioning data in a small form factor.

Category:
Description

Concurrent reception of GPS, GLONASS, Galileo, and BeiDou

The board is capable of receiving signals from multiple GNSS constellations simultaneously, including GPS, GLONASS, Galileo, and BeiDou. This feature enhances positioning accuracy and reliability by leveraging signals from various satellite systems to provide more comprehensive coverage.

Multi-band L1/L5 RTK with fast convergence times and reliable performance

The board utilizes multi-band RTK technology on L1 and L5 frequencies, which allows for high-precision positioning with fast convergence times. This means the system quickly achieves accurate positioning and maintains reliable performance even in dynamic environments.

Centimeter accuracy in a compact and energy-efficient module

Despite its small size, the board delivers centimeter-level positioning accuracy. It is designed to be energy-efficient, ensuring low power consumption while providing precise positioning capabilities.

Easy integration of RTK for fast time-to-market

The board simplifies the integration of RTK technology, enabling quicker deployment and reducing development time. This feature accelerates the process of bringing products to market by making it easier to incorporate high-precision positioning into new systems.

Native support for PointPerfect simplifies integration

The board includes native support for PointPerfect, which streamlines the integration process. PointPerfect is a service that enhances GNSS accuracy, and its native support means that the board can seamlessly incorporate this service, further improving positioning performance.

Small form factor

The board is designed with a compact size, making it suitable for applications where space is limited. Its small form factor allows for easy integration into various systems without taking up excessive space.

Technical Specifications

Channels184 channels
Signal SupportedGPS L1C/A L5, GLO L1OF,
GAL E1B/C E5a, BDS B1I B2a,
QZSS L1C/A L1S L5, SBAS L1C/A
NavIC L5
AccuracyFor (GPS+GLO+GAL+BAS): Horizontal Poition Accuracy (CEP) PVT 1.5m SBAS 1.0m RTK 0.001m+1ppm Vertical Poition Accuracy (Median) PVT 2.0m SBAS 1.5m RTK 0.001m+1ppm
Data update rateAccuracy of time pulse signal RMS
99%
30 ns
60 ns
Frequency of time pulse signal 0.25 Hz to 10 MHz
(configurable)
Initialization / Time to first fix Cold starts 27 s
Aided starts 3 s
Reacquisition 4 s
SensitivitySensitivity Tracking & Nav. -167 dBm
Cold starts -148 dBm
Hot starts -157 dBm
Reacquisition -160 dBm
Anti-spoofingAdvanced anti-spoofing algorithms
Anti-jammingActive CW detection and removal
Onboard band pass filter
Dimensions71.1 x 45.7 x 1.62 mm
Input voltage3.3V DC
Connectors RS232 x 2, USB x 1 , Bluetooth(Long Range SPP)
TemperatureOperating temp. −40 °C to +85 °C
Storage temp. −40 °C to +85 °C
Humidity5% - 95% (non-condensing)
Vibration/ShockHigh vibration and shock resistance
