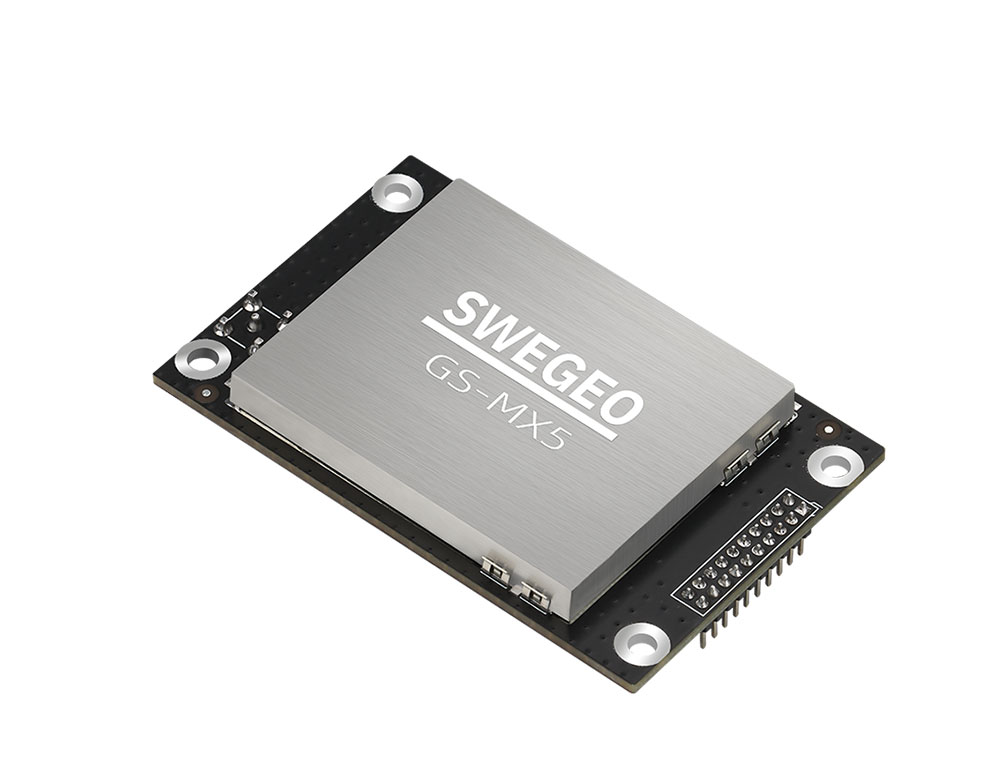

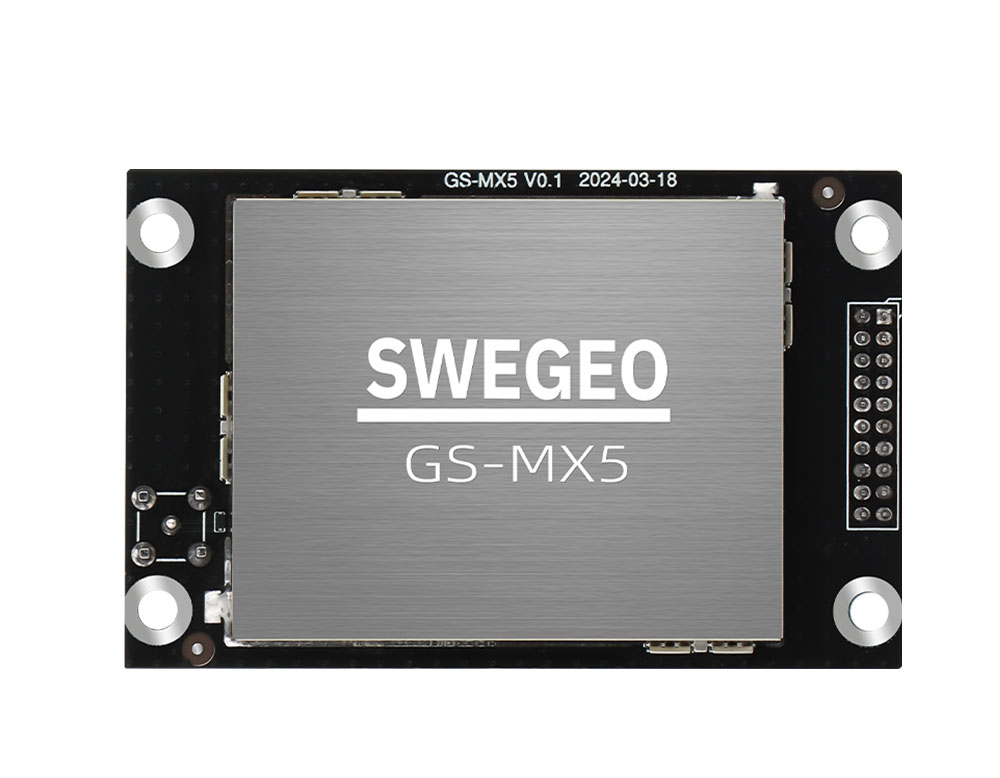

Swegeo GS-MX5
Single Antenna GNSS Receiver Board
The Swegeo GS-MX5 board offers exceptional GNSS positioning capabilities, designed for mass market applications including robotics and autonomous systems. It features a multi-constellation receiver that supports tracking of all Global Navigation Satellite System (GNSS) constellations and is compatible with both current and future signal formats. The board is equipped with advanced interference mitigation technology, providing robust performance even in challenging environments. With a low-power design and a wide array of interfaces, the Swegeo GS-MX5 ensures high reliability and precision, setting a new benchmark for GNSS positioning solutions.
Small in size, big in performance
The board is compact in size but delivers high performance, combining a small form factor with powerful capabilities to fit various applications without compromising on functionality.
All-in-view satellite tracking: multi-constellation, multi-frequency
The board can track satellites from all available GNSS constellations (GPS, GLONASS, Galileo, BDS, QZSS) and operate across multiple frequencies, ensuring comprehensive and precise positioning data regardless of satellite availability or signal type.
Best-in-class reliable and scalable position accuracy
The board offers top-tier positioning accuracy that is both reliable and scalable, making it suitable for a wide range of applications from everyday use to high-precision requirements.
Future proof: supporting current and future satellite signals
Designed to be forward-compatible, the board supports not only existing satellite signals but also upcoming signals, ensuring long-term usability and adaptability as new technologies emerge.
AIM+ unique interference mitigation and monitoring system as part of the advanced GNSS+ algorithms
Features AIM+ technology, which provides advanced interference mitigation and monitoring. This system uses sophisticated algorithms to reduce the impact of signal interference, ensuring accurate performance even in challenging environments.
Update rate of 100 Hz
The board has a high update rate of 100 Hz, meaning it can refresh positioning data 100 times per second, providing real-time, precise tracking and responsiveness.
Industry-leading ultra-low power consumption
Designed with energy efficiency in mind, the board consumes very little power while maintaining high performance, making it ideal for battery-operated and energy-sensitive applications.
Easy-to-integrate, optimized for automated assembly
The board is designed for easy integration into various systems and is optimized for automated assembly processes, streamlining production and reducing integration time.
Channels | 448 channels |
Signal Supported | GPS: L1C/A, L1PY, L2C, L2P, L5 GLONASS: L1CA, L2CA, L2P, L3 CDMA Beidou: B1I, B1C, B2a, B2b, B2I, B3 Galileo: E1, E5a, E5b, E5 AltBoc, E6 QZSS: L1C/A, L1 C/B, L2C, L5 Navic: L5 SBAS: Egnos, WAAS, GAGAN, MSAS, SDCM (L1, L5) On module L-band |
Accuracy | Horizontal accuracy 0.6 cm + 0.5 ppm Vertical accuracy 1 cm + 1 ppm Other positioning modes accuracy 3,4 Horizontal Vertical Standalone 1.2 m 1.9 m SBAS 0.6 m 0.8 m DGNSS 0.4 m 0.7 m |
Data update rate | Maximum update rate Position 100 Hz Measurements only 100 Hz |
Initialization / Time to first fix | Initialisation time 7 s Cold start8 < 45 s Warm start9 < 20 s Re-acquisition 1 s |
Accuracy | Velocity accuracy 3,4 3 cm/s Latency 6 <10 ms Time precision xPPS out7 5 ns Event accuracy < 20 ns |
Dimensions | 71.1 x 45.7 x 1.62 mm |
Weight | 644 gram |
Input voltage | 3.3V DC |
Connectors | RS232 x 2, USB x 1 , Bluetooth(Long Range SPP) |
Temperature | Operating temp -40 to 85° C -40 to 185° F Storage temp -55 to 85° C -67 to 185° F |
Humidity | 5% - 95% (non-condensing) |
Vibration/Shock | MIL-STD-810G |
