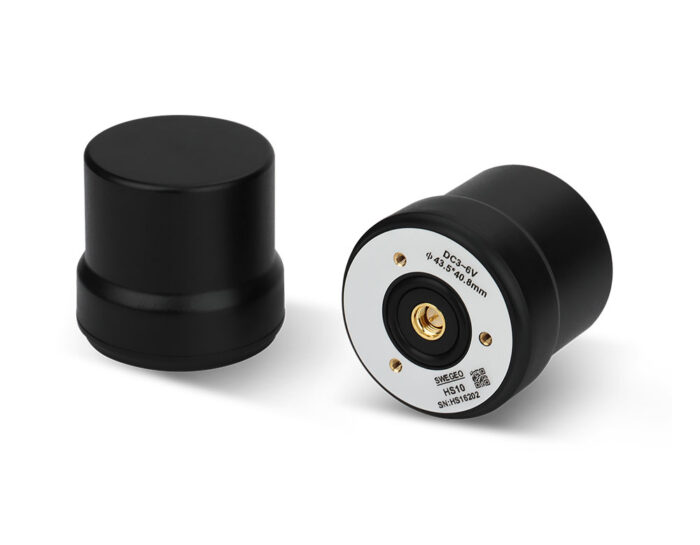

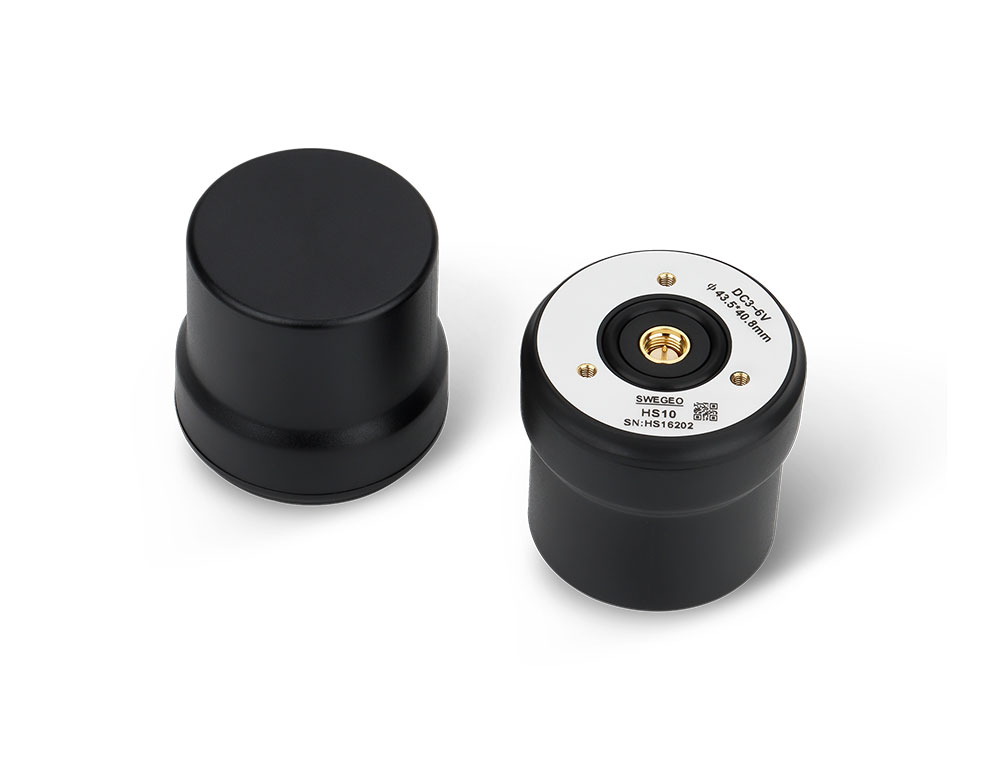

Swegeo HS10
High Gain Reception & Reliable Low-Noise Amplifier for Optimal Satellite Tracking
It fits into any application that requires a small size and lightweight antenna without sacrificing high performance in high-precision positioning, particularly in UAV, pocket-size RTK, handheld/tablet, or other portable system applications.
Enhanced Performance and Precision
Multi-arm spiral technology ensures high performance on right-hand circular polarization and phase center stability. It further lowers the measurement errors.
Optimized Reception
The overall design provides a high gain on low-elevation satellite signal reception so that a higher number of satellites are available for position calculation.
Improved Signal Quality
Built-in low-noise amplifier, two-stage filter, good out-of-band suppression strong anti-interference ability provide fully reliable antenna performance in harsh electromagnetic environments.
Versatile and Durable
It is small in size, lightweight, and easy to carry and install.
Architecture | Quadrifilar Helix |
| Signal Supported | GPS: L1/L2/L5 GLONASS: G1/G2/G3; BEIDOU B1/B2/B3 GALILEO E1/E5a/E5b/E6 QZSS L1/L2/L5 IRNSS L1/L2/L5 SBAS L1/L2/L5 L-Band |
| Nominal Impedance | 50 Ω |
| Polarization | RHCP |
| Axial Ratio @zenith | ≤1.5dB |
| Gain @zenith | ≥2.5dBi |
| Dimensions | Φ43.5 mm*40.8 mm |
| Connector | SMA-J |
| Weight | 32 gram |
| Radome | ABS+PC |
| Attachment | 3 screws on base |
Frequency Range | 1164MHz~1278MHz 1525MHz~1615MHz |
| LNA Gain* | 35±3.0dB（Typ. @25°C） |
| Noise Figure* | ≤1.5 dB@25°C , Typ. |
| Output VSWR | ≤1.8:1 typ. 2.0:1max |
| Operation Voltage | 3.0~16V DC |
| Operation Current | ≤45mA |
| Operating Temperature | -40°C to+85°C |
| Storage Temperature | -45°C to+85°C |
| Humidity | 95% Non-condensing |
| Ingress Rating | IP67 |
