Swegeo SS100D-INS
Dual Antenna GNSS Receiver Sensor
Key Feature
- Equipped with multi-GNSS support, it provides reliable and stable satellite signal reception from GPS, GLONASS, Galileo and BeiDou systems.
- It is suitable for various harsh environments thanks to its robust design and IP67 class housing.
- The receiver’s high update rate, low latency and integrated communication interfaces allow for seamless integration into your existing systems.
Multi-Constellation GNSS Support
Provides reliable and robust signal reception from GPS, GLONASS, Galileo, and
BeiDou systems, ensuring comprehensive coverage and improved accuracy.

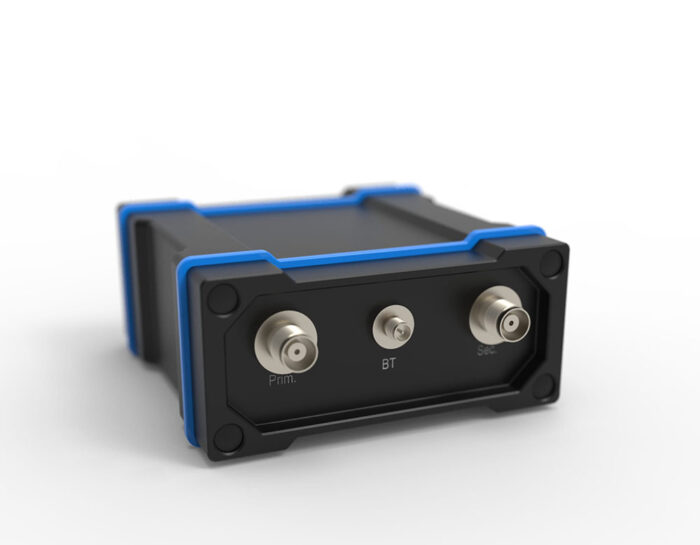

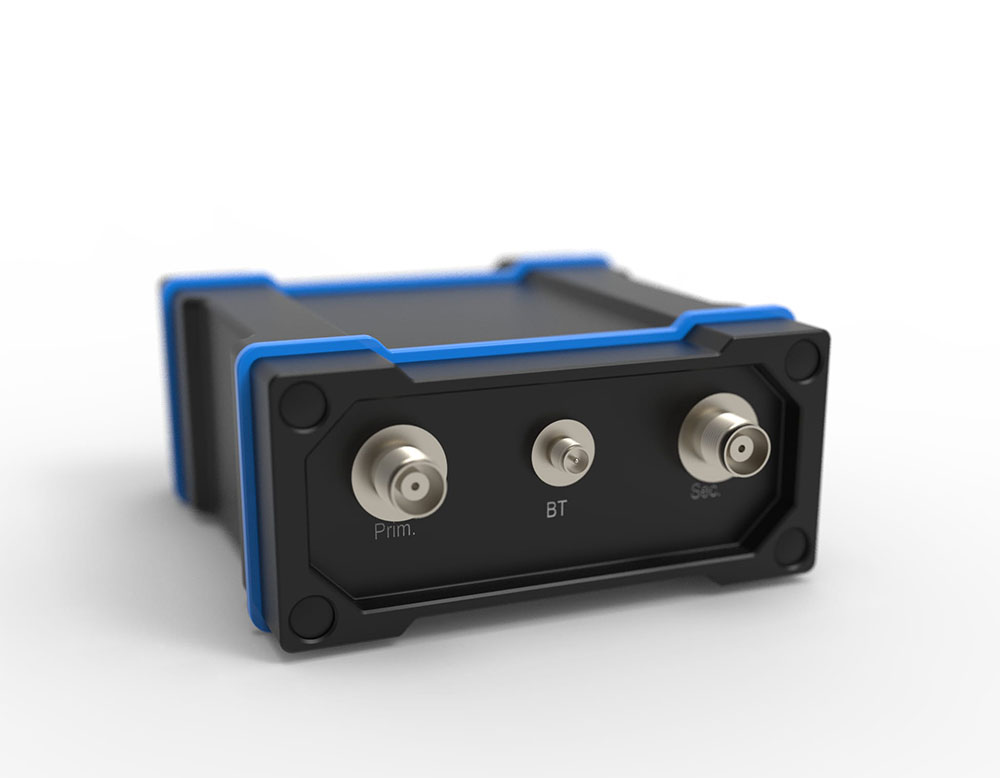

Dual Antenna Configuration
Enhances positioning accuracy and performance, particularly in challenging
environments, by using two antennas to better mitigate signal obstructions and
multipath effects.
Rugged Design with IP67 Rating
Features a durable and weather-resistant enclosure, suitable for various
demanding applications and harsh conditions.
High Update Rate and Low Latency
Offers real-time data with minimal delay, providing timely and accurate
positioning information for critical operations.

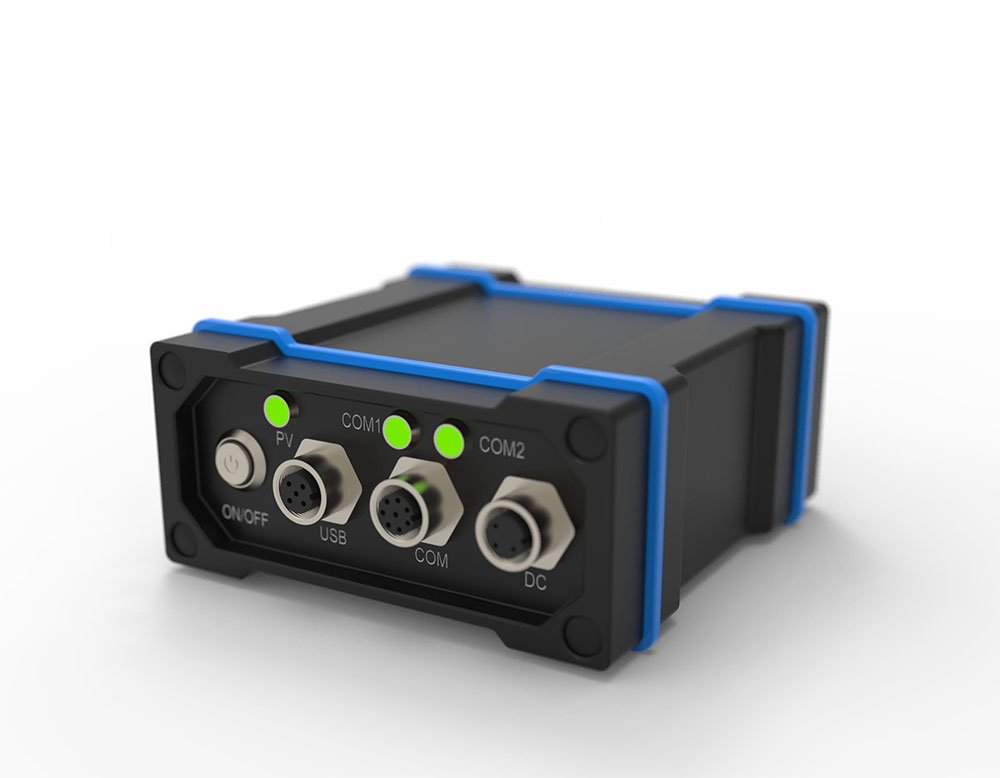

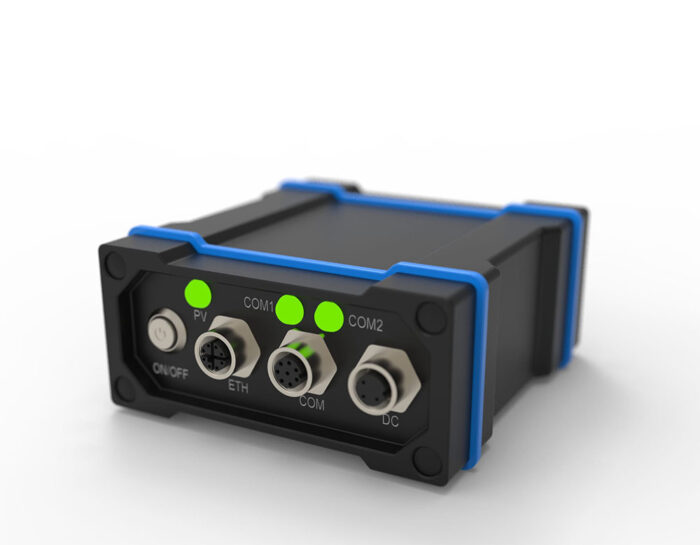

Integrated Communication Interfaces
Facilitates seamless integration into existing systems with various
communication options, enhancing connectivity and ease of use.
Autonomous Vehicles in Urban Environments:
The SS100D-INS combines dual-antenna GNSS with an inertial navigation system, providing continuous positioning and attitude even when satellite signals are briefly lost (e.g., driving under bridges or through urban canyons). Developers of self-driving cars and delivery robots use this sensor to maintain lane-level accuracy and orientation during GPS outages. The INS bridges gaps in GNSS coverage, allowing automated vehicles to navigate reliably through tunnels, parking garages, or dense city streets while preserving accurate heading and pitch/roll information for vehicle control.
High-End UAV and Mapping Platforms:
UAV integrators choose the SS100D-INS for aerial mapping drones and surveillance UAVs that demand both precision and resilience. The dual GNSS antennas provide accurate heading for sensor pointing (useful for aligning aerial cameras or LiDAR scanners), while the onboard IMU delivers stable flight attitude and positions during aggressive maneuvers or temporary signal blockages (like flying beneath tree canopies). This enables drones to collect consistent, georeferenced data and maintain flight stability, which is critical in surveying difficult terrain or inspecting infrastructure where GNSS signals might fluctuate.
Surveying & Geotechnical Monitoring:
For applications like geodetic monitoring, mining surveys, or marine construction, the SS100D-INS offers a complete positioning solution. Surveyors can install it on a moving platform (such as a boat or an all-terrain vehicle) to obtain not only accurate coordinates but also the platform’s orientation and tilt. This is valuable when mapping riverbeds or construction sites – the INS helps correct for any sensor motion or waves. Even in static high-precision setups (like monitoring structural deformation of bridges or dams), the dual GNSS/INS system provides robust data, using inertial measurements to smooth out GNSS noise and ensure reliability under heavy vibration or intermittent signal reception.
| Parametre | Değerler | Parametre | Değerler |
|---|---|---|---|
| Primary RF |
|
Secondary RF |
|
| Accuracy |
|
Data Update Rate |
|
| Time to First Fix |
|
Velocity Limit | 600 m/s |
| Velocity Accuracy | <0.03 m/s RMS | Time Accuracy | <5 ns RMS |
| Dimensions | 147 x 125 x 55 mm | Weight | 500 g |
| Power Consumption | 3.95 W | Input Voltage | +9 to +36 VDC |
| 2 Antenna LNA Power Output |
|
Connectors |
|
| Status LED |
|
Temperature |
|
| Humidity | 95% Non-condensing | Ingress Protection Rating | IP67 |
| Certifications | MIL-STD-810H (Vibration, Shock, Bump, Acceleration) | Mechanical Properties |
|
| Communication |
|
Environmental |
|
